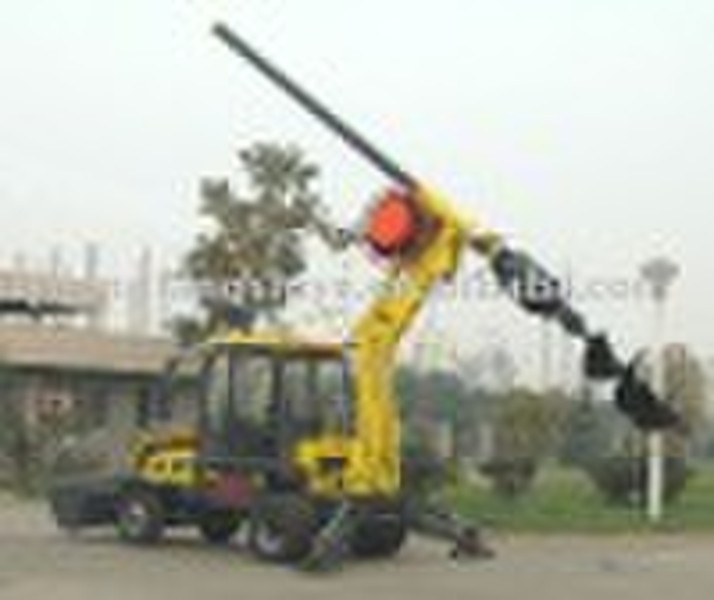

Multifunctional the rotating drill

Wheeled half turn multi-function the rotating drill According to need matching different specifications of drilling, pile bore diameter can reach 1200mm; 500mm - With the rotating drill and excavator function of the conversion, Unique can construction of underground continuous wall, transforms quickly; According to the soil texture structure Venus drilling pressure, impact. The machine adopts unique technology patent, realizing multi-function machine, compared with the same type machine with high efficiency, the price is very low. Unique technology patent realized big torque power, thereby achieving small type drill big pile hole, the equipment can be free to also, saving energy and reduce the transportation cost sparingly. The main technique parameters Tyre typeDFR20Motor(optional)DFH4105(Available other types)Power51.5kw-83kwTotal weight8000kgMax.nominal torque8700N.MSuited drill diameter500-1200mmRotary speed0-30r/minPressure16mpaMax.drill depth10m-30mBucket capacity0.3m3-0.4m3Max.digging radius5700mmMax.loading height5200mm-6000mmdigging depth3000-3200mmShape dimension8000*2450*2800
